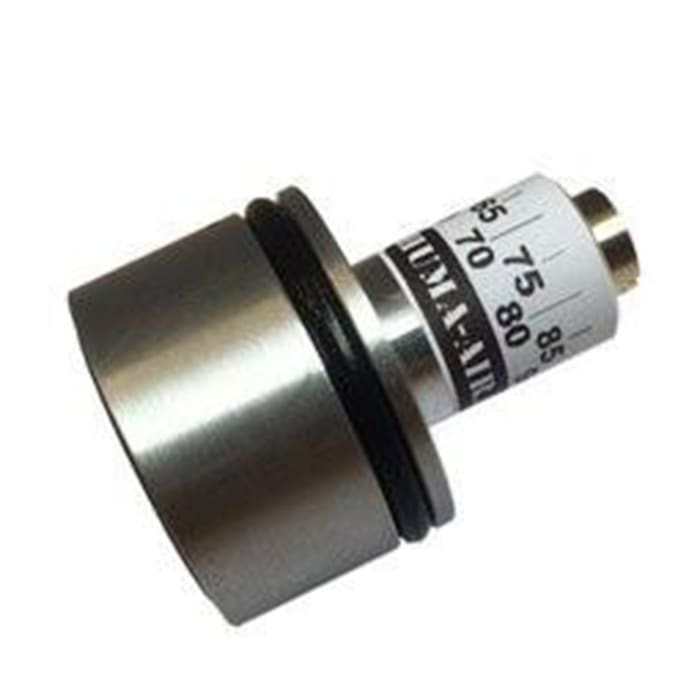

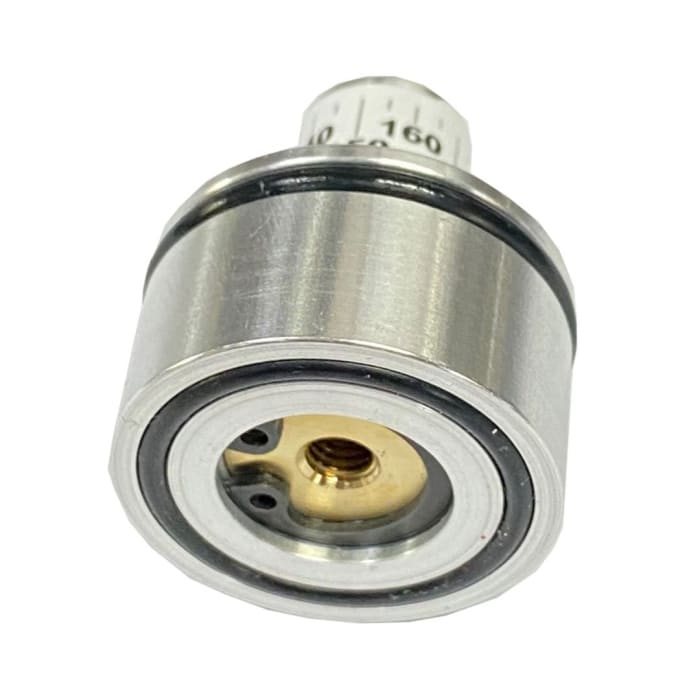

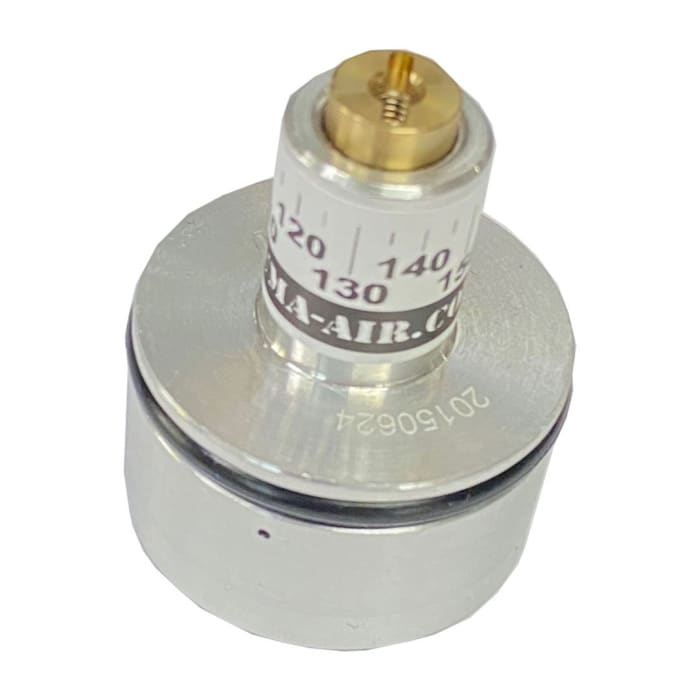

Huma-Air Tuning Regulator for HW100 - HP

P-HR/HW001
Regular price
R 2,800.00
Sale price
R 2,800.00
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

Huma-Air Tuning Regulator For The Weihrauch HW100

For the Weihraugh HW100 air rifle, we have a pressure regulator available that can be pushed into the pressure tube.
This regulator is vented to the atmosphere without any modification to your pressure tube. So no drilling in the tube and also no creeping up in power during time. This model is suitable for all HW1xx models with a front fill or quick fill unit on the front side of the cylinder.

The factory reg can be bridged by removing the steel ball from it. When removed the factory regulator will not function anymore and the Huma-Air regulator will take over the pressure adjustment.
Fitting is very easy, just depressurize the rifle and unscrew the cylinder endcap off the side of the action. Then remove the large o-ring of the endcap and push the Huma-Air regulator inside the pressure tube facing the pressure label to point towards the barrel end. Then screw the endcap back in the cylinder and you are ready.

  The Benefits Of The Huma-Air, Weihrauch HW100 tuning regulator are:

  • Higher accuracy of your rifle due to the elimination of the pellet speed fluctuations
  • A constant pellet speed over the full working pressure range.
  • It will give you a better shot count and a full flat shot string immediately.
  • No fluctuations in performance under different temperatures

 When you order your Huma-Air, Weihrauch HW100 tuning regulator you will receive:

  • Your regulator preset to your own wishes
  • A pressure scale in Bar’s on the regulator, for fine-tuning or re-adjustment
  • We will include an “Huma-Air regulated” breech sticker
  • Fitting instructions link as a PDF download

Huma-Air Quality Control

Huma Air regulators are CNC produced out of high-grade aircraft aluminium and bronze. To guarantee a perfect product, every regulator is individually assembled, tested in a computerized simulation program, and adjusted to the requested pressure.
We only use high-end materials and our Belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle of less than 1% difference.
Huma Air provides a 2-year warranty on their regulators. Excluded from the warranty are shipping costs and parts that are subject to normal wear and tear such as o-rings and valve discs.

Pressure settings of the Huma-Air, Weihraugh HW100 tuning regulator

 The tuning regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes. It is also equipped with a clear pressure scale label, so you can very easy to re-adjust or fine-tune the pressure setting suitable to your wishes.


Our advice for choosing the best pressure range for your Huma-Air regulator:

  • Low pressure range:        60-110 bar for 16 Joule / 12 ft/lbs models
  • High pressure range:       100-170 bar for all FAC rifles from .177, .22 and .25.



 *NO RETURNS ON ANY HUMA REGULATORS*
