High flow, hole transfer port with middle support bridge. For maximum airflow: up to 48% larger passage area (.22 and .25) Developed in cooperation with several FX tuners. For FX Impact, FX Dreamline.

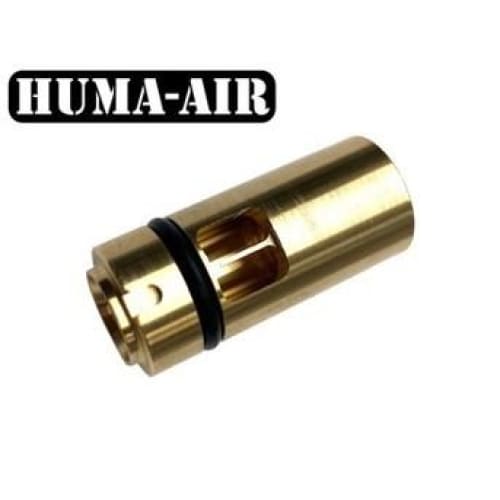

High flow, dual hole transfer port with middle support bridge for FX Impact, FX Dreamline and FX Crown
In cooperation with some of the leading FX tuners we have made a high flow transferport with a middle support bridge what divides the transfer port into a dual hole port. This middle bridge makes sure the pellet or slug nose cannot fall into the enlarged transferport hole, but will be guided smoothly by the middle bridge into the barrel. This dual hole transfer port has 48% larger air passage area (in .22 and .25) for maximum perfomance.
We have modified the o-ring groove dimensions and and locating notch of the transferport to be compatible with both the newest rifles as well as the older versions from FX.
Before tightening the grubscrew that holds the barrel in the breech, make sure the barrel is adjusted properly so the magazine slides in and out smoothly.
Available in store : .22, .25
